Brand Name: AUTOOL
Wire or Wireless: un
Size Name: 1
Output Frequency: 1
Rated Power: 1
Item Type: Car Head up Display HUD Meter
1: it supports both MPH/h and KM/h
unit: mile/h and km/h
Function: monitoring speed,tilt angle,pitch angle,etc
Feature: GPS multi-functional horizontal speedometer
Autool X90 Smart GPS Slope Meter
A smart GPS multi-functional horizontal speedometer for driving, fully supports high-precision monitoring of car speed,vehicle tilt angle, vehicle pitch angle changes, compass, time and car battery voltage status, to ensure your driving safety.
Precisely shows vehicle tilt angle with clear notification, when the angle is over 40°, alarm alerts.
Precisely show vehicle pitch angle changes,when the angle is over 40°the alarm alerts to insure your safety.After connected to power supply, there will be backlight inside, which will help you see accurately in case of night or dark situation.
Elevation error within 5- 100 meters.After the vehicle starts the speedometer starts automatically, after car parking the meter will be in sleep mode automatically.
1 Precisely shows vehicle tilt angle with clear notification, when the angle is over 40°, alarm alerts.
2 Precisely show vehicle pitch angle changes,when the angle is over 40°the alarm alerts to insure your safety.
3 After connected to power supply, there will be backlight inside, which will help you see accurately in case of night or dark situation.
4 Elevation error within 5- 100 meters.
5 After the vehicle starts the speedometer starts automatically, after car parking the meter will be in sleep mode automatically.
6 . Over speed alarm:Fatigue driving alarm alerts after driving for 4 hours.
7 Fatigue driving alarm alerts after driving for 4 hours
1 Applicable to Asian cars, American cars, European cars.
2 Equipped with high-precision satellite GPS signal module.
3 Automatically monitor vehicle driving conditions.
4 Adjust the brightness of the screen by using the sensitivity of the light sensor.
5 Free rotation, which is more sensitive.
6 It adopts color HD LCD display with high resolution.
X90-GPS Product Instructions:
1. Park the car on a level surface, stick the adhesive on the product, adjust and fix it in the vehicle for easy horizontal view.
2. Before driving, connect the power supply and wait to receive the satellite GPS signal until the data shows normal.
3. Long and hold the setting button and click the start button to adjust the electronic clock.
4. Press and hold the start button, and click the setting button to adjust the time of the X90.
NOTICE: The device has KMH and PMH now, short press the button M can switch them. When the PMH lights, it's on PMH counting. When the PHM faded out, it's on KMP counting.The speed and altitude unit is in MPH and inch.
1.How To Switch From Miles To Km?
it supports both MPH/h and KM/h
Press M , switch MPH/h inch and KM/h metric
(Note: Altitude is in feet in MPH/h mode and meters in KM/h mode)
(Explanation: MPH/h icon lights up to MPH/h Mode, MPH/h icon is off to indicate KM/h mode)
2.How to adjust the time?
In the state of power off, press the power button. After the screen lights up, press and hold the M button / power button 3-4 seconds immediately
1. Decrease time: Long press the M key will automatically enter the time adjustment interface.
M key (left): adjust the hour hand, power button (on the right): adjust the second hand.
2. Add time: long press the power button.
some country's time is slower /faster than GPS time some hours
You can adjust time according to the user manual
3.Are The Unit And Ground Level Settings Remembered When The Power Is Turned Off?
4.what Are The Other Cable Inlets / Outlets On The Back Of The Case For?
Two Power Outlets, You Can Use The Socket Of The Cigarette Lighter
Among Them, The Android Usb Port Can Be Connected, But In This Case, The Voltage Will Not Be Displayed.
The Obd2 Outlet On The Right Has No Useful For You.
5.My vehicle dashboard is placed at a angle. So does it have a effect on the readings or is there a way to calibrate the unit after fixing?
Can be calibrated so it does not affect readings
The X90 receives GPS signals through satellite transmission.Large obstructions such as the underground parking lot,
tunnels, high-rise buildings,etc.
will interfere the GPS signal searching, which normally lead to failure to read the speed data.

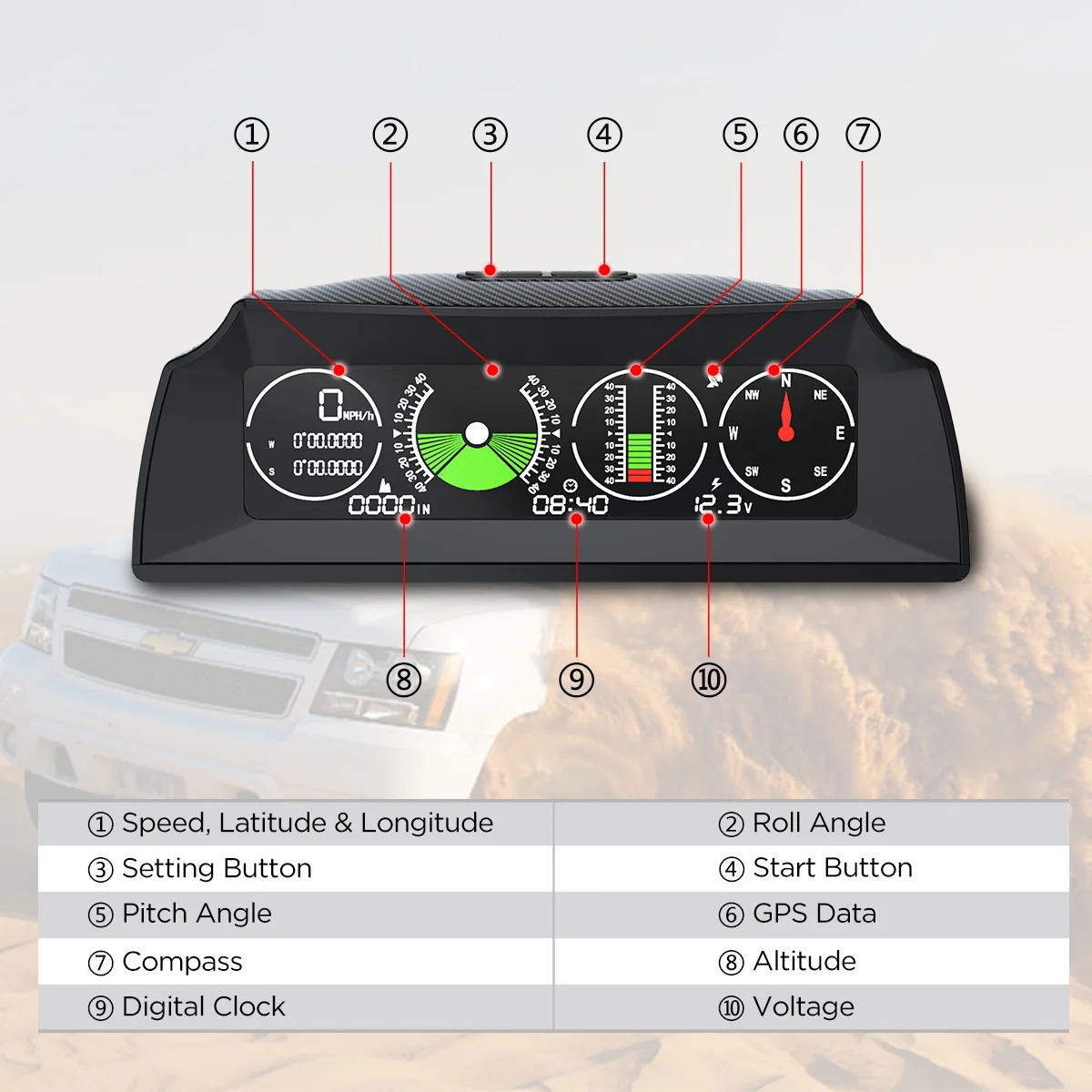

① Speed / Latitude& Longitude ② Roll Angle ③ Setting Button ④ Start Button ⑤ Pitch Angle ⑥ Compass
